Reaction Injection Molding & DCPD Molding
Reaction Injection Molding is when two reactive materials are injected into a closed mold. They polymerize and set to the final shape.
Dicyclopentadiene (DCPD) is a thermoset polymer whose chemical compound is C10H12.
What is Reaction Injection Molding (RIM)?
Reaction Injection Molding (RIM) is a distinctive manufacturing process used to create large, complex parts made of polyurethane. This advanced technique involves the high-pressure mixing and injection of reactive liquid components. A polyol and an isocyanate, are injected into a mold, where they react and solidify. RIM is renowned for its ability to produce parts with:
- Intricate Designs: The process supports the creation of complex shapes and detailed surface textures.
- High Strength and Lightweight: RIM parts feature superior strength-to-weight ratios. They are ideal for a range of applications where durability and lightness are paramount.
- Design Versatility: It enables the production of large components with variable wall thicknesses and integrated color options.
- Cost-Efficiency: Especially effective for low to medium-volume production. RIM is a cost-effective solution compared to traditional plastic molding techniques. Annual volume for rim parts is usually less than 10,000 parts per mold, per year.
What is dicyclopentadiene (DCPD)?
DCPD (Dicyclopentadiene) is a highly robust material, chosen for its exceptional durability and adaptability in molding processes. At Core, we source our DCPD from Telene, a trusted supplier, ensuring consistency and quality in our products. DCPD’s properties make it particularly suitable for creating strong, lightweight parts and offer several advantages:
- Unmatched Impact Resistance: DCPD has excellent impact and crack resistance, critical for components in demanding applications.
- Chemical and Corrosion Resistance: Its resistance to harsh chemicals and environmental factors enhances the longevity and reliability of the parts.
- Design Flexibility: Tailor part design for varying degrees of stiffness and heat resistance. We understand that different applications feature different design requirements.
- Aesthetic Matter: Ideal for applications where both form and function are important. DCPD can mold into complex shapes for visually appealing designs.
Tooling for DCPD Molds:
- Aluminum is the most common material for two-piece molds. Molds with nickel shell construction are available to reduce cost.
- Our experience allows you to rely on advice for tool design & optimization. We also have connections with leading tool shops. This ensures both quality and longevity for your capital investment.
Technical Advancements in RIM & DCPD Processes
5G Transparency with Rim
Complex A-Side & B-Side Geometries
Medium to High Volume Programs
Optimal Finish
5G Transparency with Rim
Essential for parts like electronic enclosures, where uninterrupted signal transmission is crucial.
Complex A-Side & B-Side Geometries
Our expertise allows for the creation of parts with detailed exteriors (A-side) and intricate internal structures (B-side).
Medium to High Volume Programs
Short (4-6 minute) cycle times and the use of machined aluminum tooling support annual program volumes to >10,000 units.
Optimal Finish
DCPD accepts paint for Class A finishes. They can be assembled in the same manner as other composite materials after curing.
Industry-Wide Applications
The versatility of our RIM and DCPD technologies enables us to serve a wide range of industries. From automotive components like truck hoods to telecommunications equipment and medical devices, our processes are designed to meet diverse and challenging industry demands.
Transportation Components
Reaction injection molded parts can form complex shapes. RIM parts are incredibly impact-resistant. RIM and DCPD are ideal for making truck parts like hoods, roofs, and panels due to their compatibility.
Industrial Machinery & Construction
For products like telehandlers and other lift equipment used on job sites. It makes for great protection of engines and powertrain components that are succeptable to impacts.
Agricultural Equipment
The high strength and durability of RIM parts make them suitable for agricultural equipment components.
Raydomes
DCPD from Telene allows for the transfer of wifi signals. Our press capabilities can mold large & complex parts that need to protect 5G signal equipment.

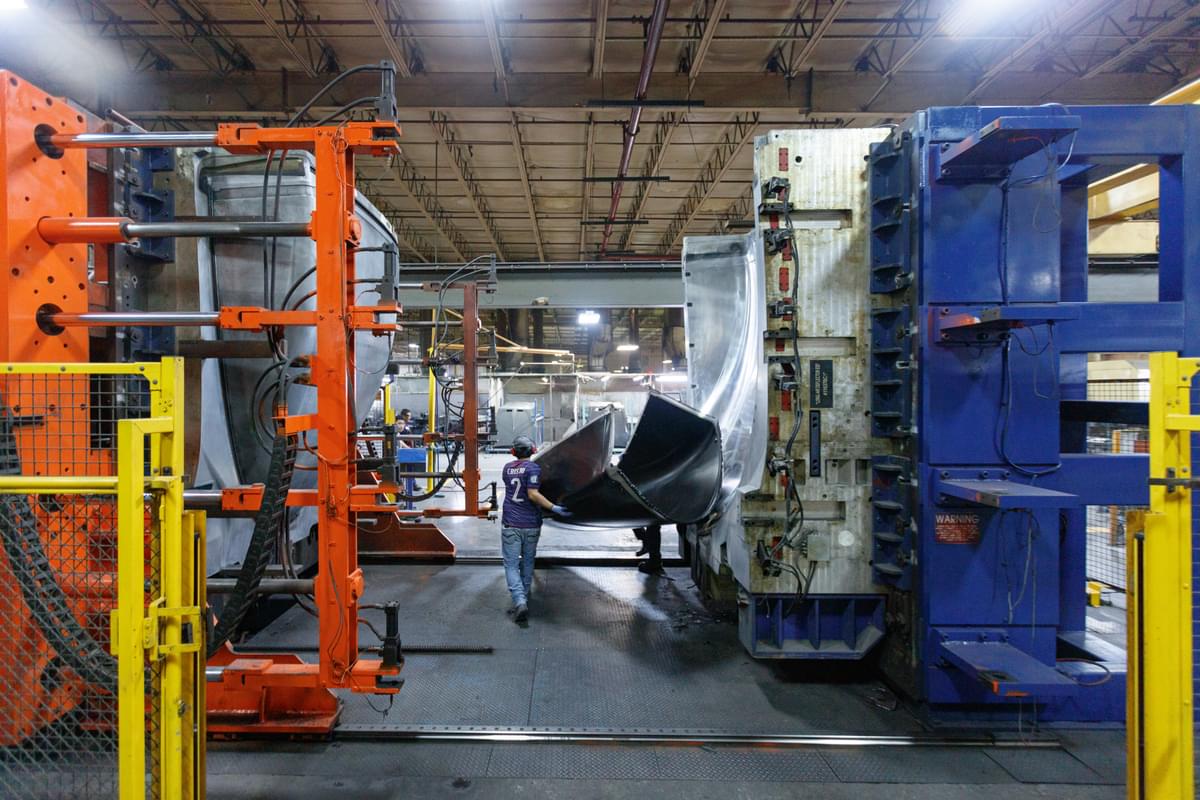

RIM & DCPD in Action: Manufacturing Truck Hoods
A standout application of our DCPD molding process is in the production of truck hoods. Our hoods show how DCPD’s special qualities are used to meet the needs of the transportation industry. Our truck hoods are:
- Highly Durable: Withstanding the rigors of the road, including impacts, vibrations, and varying weather conditions.
- Lightweight: Contributing to overall vehicle efficiency by reducing weight without sacrificing strength. A high strength-to-weight ratio is important for large vehicles.
- Resistant to Wear and Tear: DCPD’s chemical and environmental resilience ensures a longer lifespan for the hoods. DCPD reduces common issues like corrosion and wear.
- Customizable: Tailored to meet specific design and aesthetic requirements. We craft our truck hoods with precision to fit various truck models and brands.
PARTNER WITH CORE FOR CUSTOMIZED MOLDING SOLUTIONS
At Core Molding Technologies, we are dedicated to providing customized solutions that leverage our expertise in RIM and DCPD molding. We invite you to collaborate with us and explore how our capabilities can elevate your projects. Let's start a conversation about your specific needs.
